MRCOOL DIY 4th gen ENERGY STAR Single Zone 12000-BTU 22 SEER Ductless Mini Split Air Conditioner Heat Pump Included with 25-ft Line Set 115-Volt

Ships from manufacturer
SKU: Item # 21223990 | Model # DIY-12-HP-WM-115C25
Special Order $2,469.00

Ways to get this item

Shipping
Est. dispatch in 1–7 business days
Pickup
Est. ready in 1–5 business days

Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.

Product at a glance

Full specifications
Model # DIY-12-HP-WM-115C25
Dimensions
Air Handler Depth (Inches)
7.44
Height (Inches)
21.85
Air Handler Height (Inches)
11.69
Line-set Connection Size
1/4-in x 1/2-in
Air Handler Width (Inches)
31.57
Line-set Length
25-ft
Compressor Depth (Inches)
11.93
Maximum Coverage Area (Sq. Feet)
550
Compressor Height (Inches)
21.85
Weight (lbs.)
65.7
Compressor Width (Inches)
30.12
Width (Inches)
30.12
Cord Length (Feet)
25.0
Zone Capacity
Single
Depth (Inches)
11.93
Color / finish
White
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Keep your supplies organized.

Create a branded label with a QR code to scan and reorder this exact option.
View comparison View comparison Choose up to 4 products to compare.

Product details

Product overview

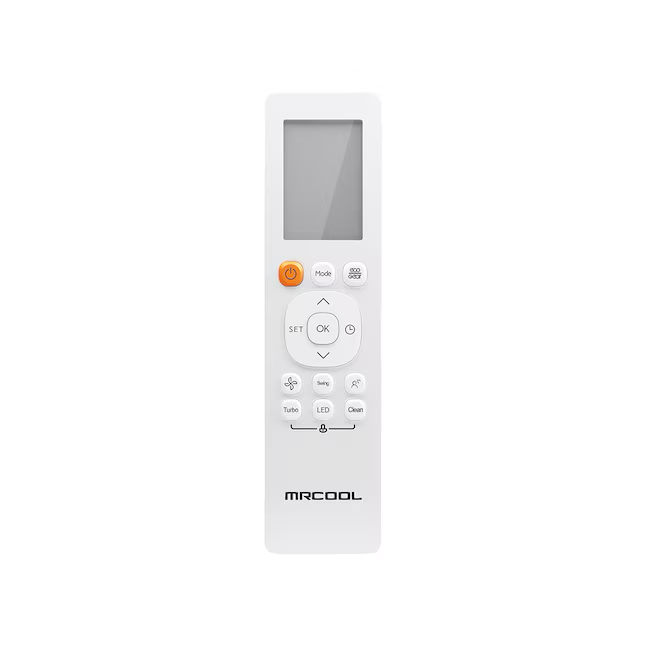

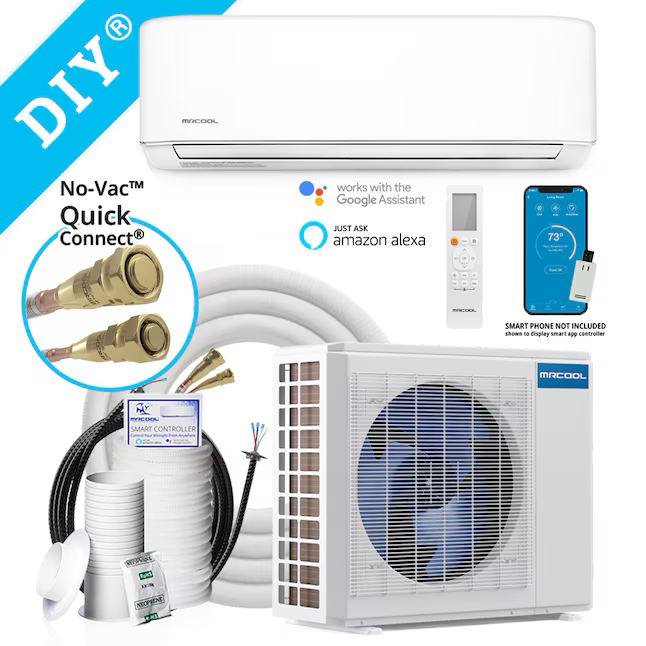

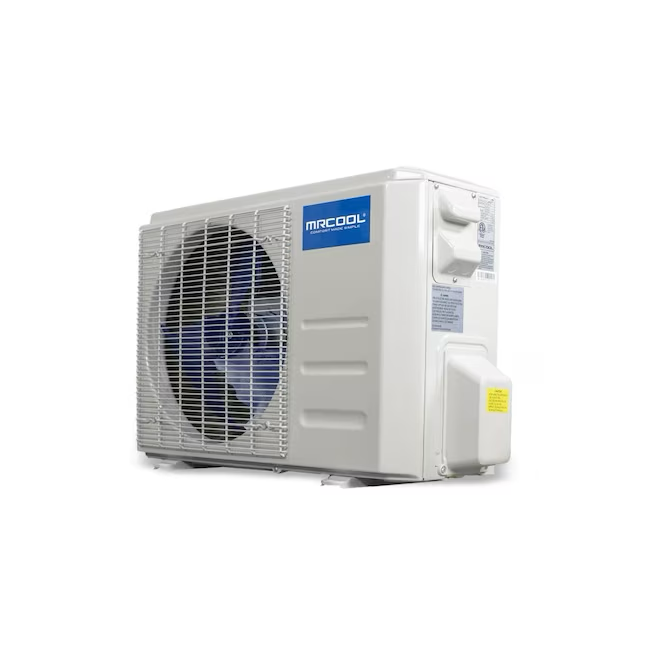

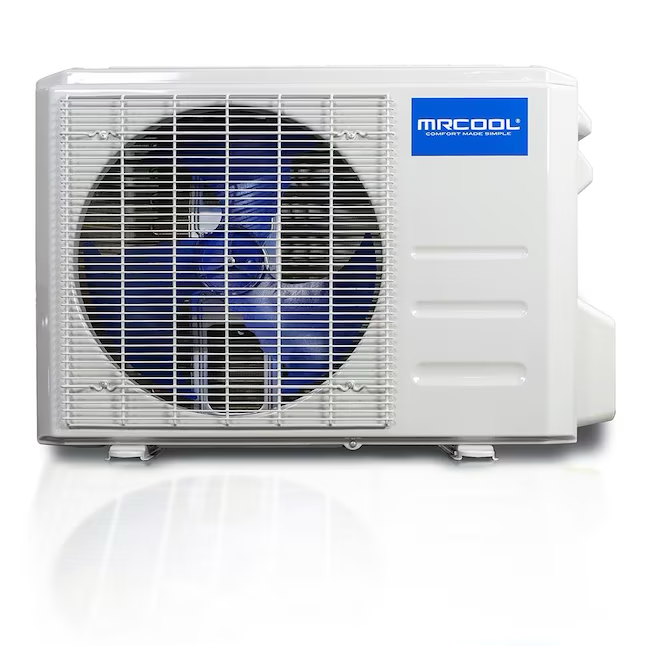

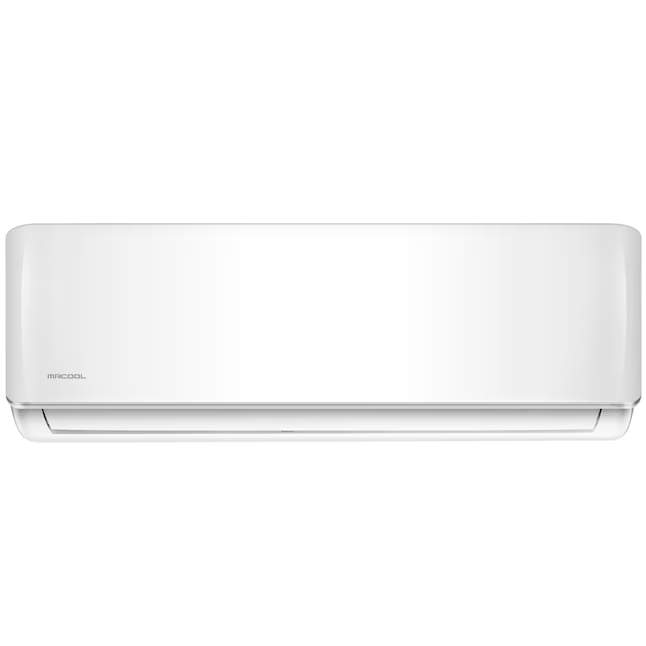

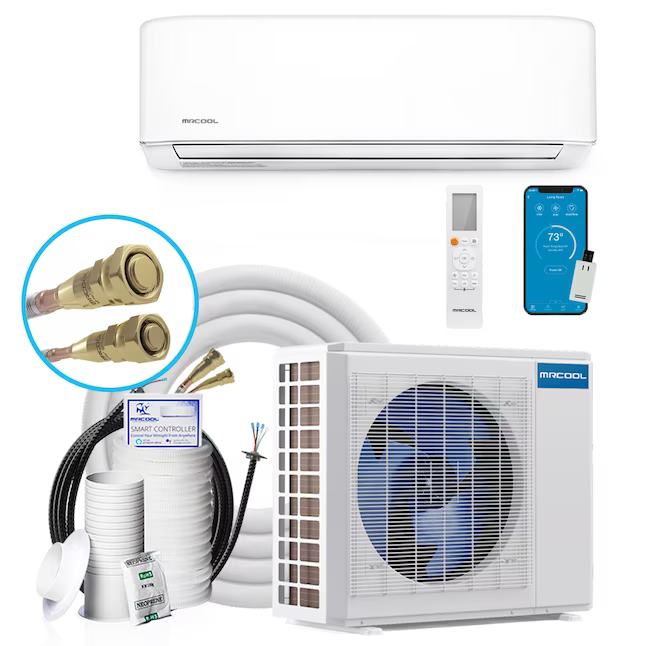

Introducing the latest in home comfort technology, with the 4th generation MRCOOL DIY 12K BTU, 22 SEER ductless Heat pump system. This powerful single-zone system has the capability of heating and cooling an area up to 500 sq. Ft. It comes complete with a 12K condenser, 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also has quick connectors which require no special tools, equipment, or training to install. The MRCOOL DIY system also includes many features that make it stand out. The first of which is its ability to achieve an outstanding 22 SEER efficiency rating allowing it to be Energy Star certified. This system has many operating modes to select from to suit the needs of the user, including heat, cool, dry (dehumidification), and sleep. It also has the follow Me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control. The DIY features the convenience of being able to operate its modes and functions with your smart phone by using the smart HVAC app.

  • Energy Star certified 22 SEER, 11.5 HSPF

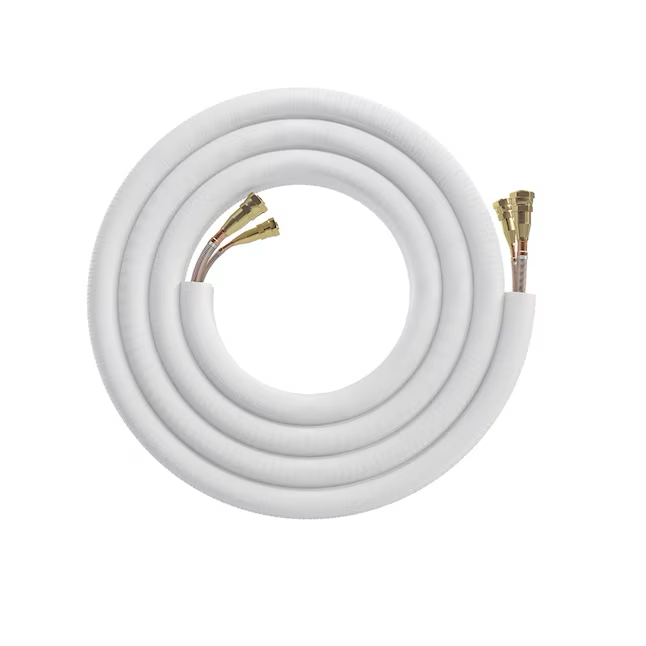

  • Easy DIY installation: pre-charged R-410A 25ft quick connect line doesn't require special tools, equipment, or training

  • Designed to efficiently heat and cool a single 500 Sq Ft room

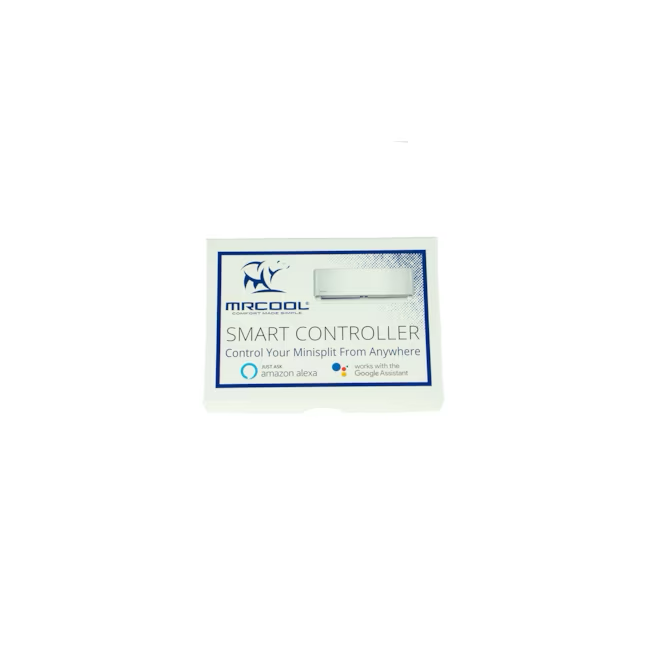

  • SmartHVAC app: wifi control - compatible with amazon Alexa and Google assistant - you can control your DIY anywhere with your apple or android smart device and an Internet connection

  • Variable-speed DC inverter compressor technology cuts operating costs

  • Low ambient cooling: cooling down to 5F this feature makes the Mrcool DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year

  • Gold fin condenser corrosion resistant live on the coast don't worry, our condenser is built to resist long term corrosion

  • 7-Year compressor warranty and 5-year parts warranty

  • Follow me feature,dehumidifying operation,auto mode,lover position memory, and sleep mode

Technical information

Specifications

Brand / manufacturer
MRCOOL
SKU
Item # 21223990 | Model # DIY-12-HP-WM-115C25
UPC / barcode
810035935150
Product category
Ductless Mini Splits
Item weight
70.0 lb
Dimensions
Air Handler Depth (Inches)
7.44
Height (Inches)
21.85
Air Handler Height (Inches)
11.69
Line-set Connection Size
1/4-in x 1/2-in
Air Handler Width (Inches)
31.57
Line-set Length
25-ft
Compressor Depth (Inches)
11.93
Maximum Coverage Area (Sq. Feet)
550
Compressor Height (Inches)
21.85
Weight (lbs.)
65.7
Compressor Width (Inches)
30.12
Width (Inches)
30.12
Cord Length (Feet)
25.0
Zone Capacity
Single
Depth (Inches)
11.93
Color / finish
White
Wattage
115
Saber exclusive
No
Technical specifications
24 Hour Timer
No
AHRI Certification Number
208552787
Minimum Outdoor Temperature (Fahrenheit)
-13.0
Amperage
25.0
Mounting Location
Wall
Annual Fuel Utilization Efficiency % (Percentage)
0.0
Multi-Directional Air Control
Yes
Auto Cool
Yes
Noise Rating
Quiet (45 decibels or below)
Automatic Shut-Off
No
Number of Speeds
4.0
Control Type
Dimmable LED
Number of Tons
1.0
Cooling BTU Rating (BTU)
12000
Oscillation
Yes
Decibel Rating (Highest Setting)
37.0
Overload Protection
Yes
Decibel Rating (Lowest Setting)
23.5
Plug Type
N/A
Fan Only Option
Yes
Quiet Mode
Yes
Filter Type
Nylon
Refrigerant Type
R-410A
Full Load Amperage Requirement (Amps)
25.0
Remote Control Included
Yes
Heat Pump Included
Yes
Sleep Mode
Yes
Heating BTU Rating (BTU)
12000
Thermostat
No
Hub Required
No
Timer
Yes
Kit
Yes
Voice Controlled
Yes
Low Voltage Compensation
No
Voltage (Volts)
115.0

Product resources

Guides, documents & data sheets

Browse the document library → How to measure this project →

Before you order

Product questions

What dimensions are listed for this option?
Air Handler Depth (Inches)
7.44
Height (Inches)
21.85
Air Handler Height (Inches)
11.69
Line-set Connection Size
1/4-in x 1/2-in
Air Handler Width (Inches)
31.57
Line-set Length
25-ft
Compressor Depth (Inches)
11.93
Maximum Coverage Area (Sq. Feet)
550
Compressor Height (Inches)
21.85
Weight (lbs.)
65.7
Compressor Width (Inches)
30.12
Width (Inches)
30.12
Cord Length (Feet)
25.0
Zone Capacity
Single
Depth (Inches)
11.93

Product dimensions do not establish installation clearances. Check the exact model’s installation instructions.
