Read shipping policy →Fasco D258 1/5-1/10 HP Fan Coil / Room Air Conditioner Motor 1550 RPM 2 Speed 208/230V
Regular price
$214.00
Select an available option combination to check delivery and pickup.
Ways to get this item
- Shipping
- Currently unavailable
- Same-day delivery
- Currently unavailable
- Pickup
- Currently unavailable
Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Keep your supplies organized.
Create a branded bin label for this product.
Product details
Product overview

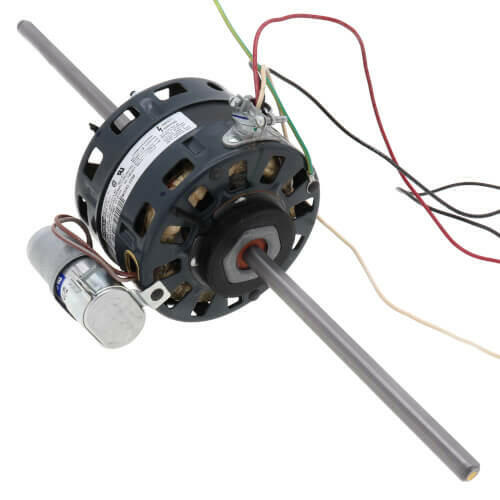

Fasco D2581/5-1/10 HP Fan Coil / Room Air Conditioner Motor 1550 RPM 2 Speed 208/230V 42 Frame Replaces Magnetek 747
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 31" Leads with .5" Strip
- Resilient Mounting Ring Lead End and Opposite Lead End
General Specifications
| UPC: | 815585029397 | Weight: | 10.00 LB |
| Packaged Length: | 7 IN | Packaged Width: | 5.13 IN |
| Packaged Height: | 22 IN |
Nameplate Specifications
| Output HP: | 1/5-1/10 Hp | Output KW: | 0.15 kW |
| Frequency: | 60 Hz | Voltage: | 208/230 V |
| Current: | 2.8/1.3 A | Speed: | 1550 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 42 | Enclosure: | Totally Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Lead End |
| Mounting: | Resilient Rings | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 19.45 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 8.00 in |
Technical information
Specifications
- Brand / manufacturer
- FASCO
- SKU
- Item # 41223998 | Model # D258
- UPC / barcode
- 815585029342
- Product category
- Motors
- Item weight
- 12.0 lb
- Material
- Steel
