Saber Sales product documents
Product reference sheet
Product information for planning, purchasing and the work ahead.

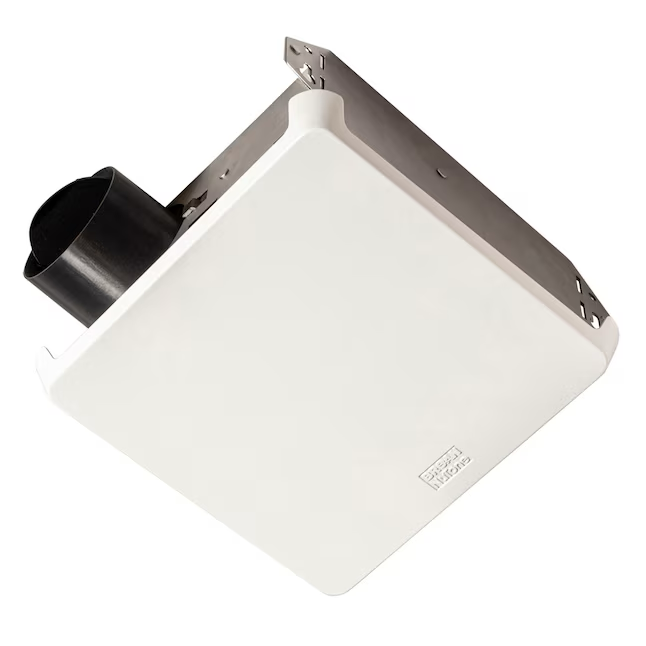

Broan-NuTone 2-Sone 50-CFM White Bathroom Fan, ENERGY STAR
- Brand
- Broan
- SKU / Item reference
- Item # 4122419 | Model # 688E
- UPC / Barcode
- 026715274161
Supplied specifications
- Dimensions
- Ceiling Cutout Length (Inches)
8.25
Fan Box Width (Inches)
4.3
Ceiling Cutout Width (Inches)
8
Grille Length (Inches)
9
Duct Size
4-in
Recommended Room Size (Sq. Feet)
45
Fan Box Height (Inches)
9.75
Suggested Room Size
Under 79 sq ft
Fan Box Length (Inches)
10.2
Width of Grille (Inches)
8.75 - Color / finish
- White
Product overview
Broan-Nutone® Economy Energy Star Series fans are versatile, compact, and economical ventilation solutions. With a galvanized steel housing and double strength mounting flanges, the economy fan offers powerful ventilation performance with Energy Star® for <2.0 sones, that helps ventilate air to prevent mold and mildew. Also including a removable motor assembly and plug-in permanently lubricated motor for ease of service and cleaning.
50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
Energy Star Certified at 2.0 audible sones for privacy while using your bathroom.
Compact housing for NO CUT and versatile installation
Powerful enough for rooms up to 45 sq ft
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Double strength mounting flanges with keyhole slots
Quiet polymeric damper prevents cold backdrafts with no metallic clatter
