Bosch Bulldog 8-Amp Sds-plus Variable Speed Corded Rotary Hammer Drill

Ships from manufacturer
SKU: Item # 81223984 | Model # 11255VSR
Special Order $312.00

Ways to get this item

Shipping
Est. dispatch in 1–7 business days
Pickup
Est. ready in 1–5 business days

Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.

Product at a glance

Full specifications
Model # 11255VSR
Dimensions
Cord Length (Feet)
8.0000
Thin Wall Core Bit Capacity
Yes
Core Bit Capacity (Inches)
2.6749
Thru-hole Capacity (Inches)
2.6250
Maximum Capacity Concrete (Inches)
1.0000
Tool Height (Inches)
4.75
Maximum Capacity Steel (Inches)
0.5000
Tool Length (Inches)
17.2500
Maximum Capacity Wood (Inches)
1.0000
Tool Weight (lbs.)
6.7000
Maximum Chuck Size
SDS-Plus
Tool Width (Inches)
3.5000
Color / finish
Blue
Voltage
120
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Keep your supplies organized.

Create a branded label with a QR code to scan and reorder this exact option.
View comparison View comparison Choose up to 4 products to compare.

Product details

Product overview

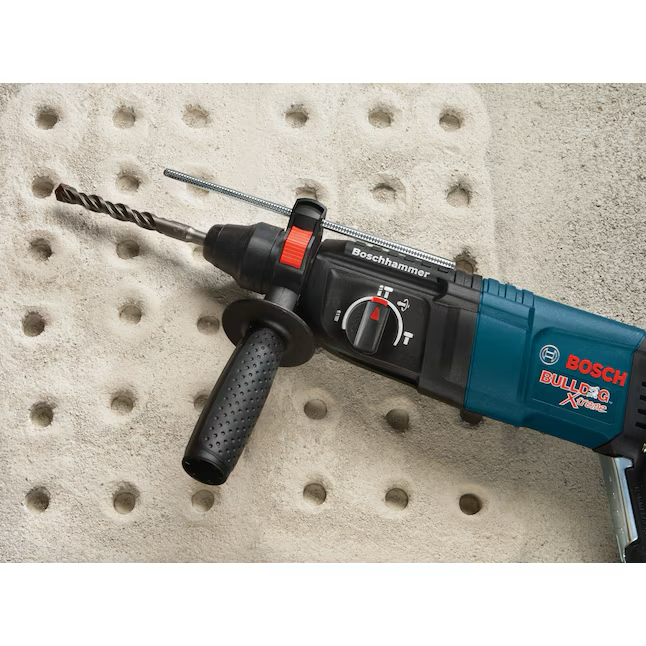

The Bosch 11255VSR SDS-plus® Bulldog™ Xtreme 1 In. Rotary Hammer is a versatile, handy tool that features a robust 8.0 Amp motor. From anchoring to large material breaking, it gets the job done right the first time. Engineered in the tradition of legendary Bulldogs, this powerful hammer delivers 2.0 Ft.-Lbs. of impact energy and 0-5,800 no-load BPM, but it weighs just 6.7 Lbs. The multifunction mode selector allows users to easily select among three modes of operation: rotary hammer, rotation only and hammer only. To optimize the chiseling angle, it has Vario-Lock positioning that rotates and locks the chisel in one of 36 different positions. It is Bosch’s PRO+GUARD™ dust system, helping users move toward OSHA Silica Table 1 dust compliance. The hammer is designed with an ergonomic D-handle for comfort. It features a variable-speed reversing trigger for accurate bit starting, and a Bosch-exclusive rotating brush plate, for equal power in forward and reverse. Busy pros will appreciate the tool's HammerHook, which allows the user to hang the tool on the job, and the SDS-plus® system provides for tool-free bit changes.

  • Robust 8.0 Amp rotary hammer – delivers 2.0 Ft-Lbs of impact energy with three modes of operation and rotating chisel lock

  • Vario-Lock positioning – rotates and locks chisel to optimize working angle

  • Variable-speed trigger with reversing – offers accurate bit starting

  • Integral clutch – disengages torque transmission if the bit gets into a bind-up scenario

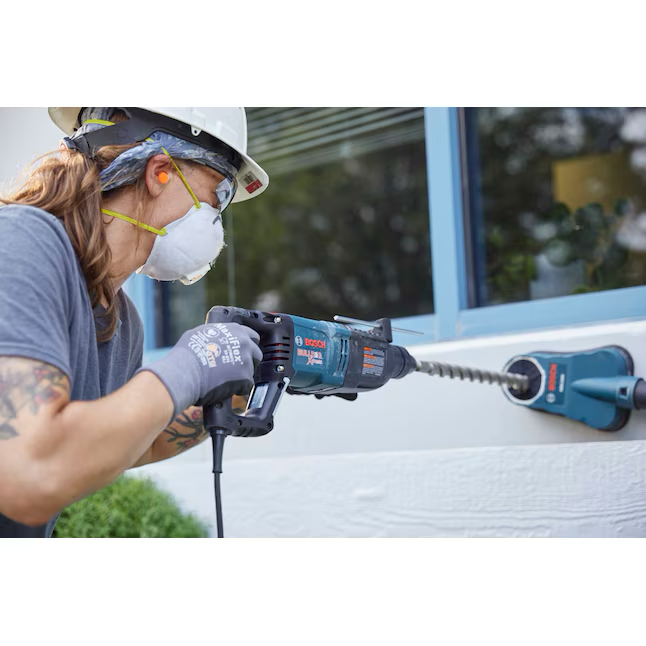

  • Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA silica table 1 dust compliance

  • Multi-function selector – three modes of operation: rotary hammer, rotation only and hammer only

  • Bosch-exclusive rotating brush plate — provides equal power in forward and reverse

  • HammerHook – allows quick tool storage during the job

  • D-handle design – ideal for overhead and downward drilling applications

Technical information

Specifications

Brand / manufacturer
Bosch
SKU
Item # 81223984 | Model # 11255VSR
UPC / barcode
000346345599
Product category
Rotary Hammer Drills
Item weight
7.0 lb
Dimensions
Cord Length (Feet)
8.0000
Thin Wall Core Bit Capacity
Yes
Core Bit Capacity (Inches)
2.6749
Thru-hole Capacity (Inches)
2.6250
Maximum Capacity Concrete (Inches)
1.0000
Tool Height (Inches)
4.75
Maximum Capacity Steel (Inches)
0.5000
Tool Length (Inches)
17.2500
Maximum Capacity Wood (Inches)
1.0000
Tool Weight (lbs.)
6.7000
Maximum Chuck Size
SDS-Plus
Tool Width (Inches)
3.5000
Color / finish
Blue
Voltage
120
Saber exclusive
No
Technical specifications
Amperage
8.0000
Hybrid Capable
No
Bare Tool
Yes
Impact Energy (Foot/lbs.)
2.0
Battery Amp Hours
8
Keyed/Keyless
Keyless
Battery Platform
N/A
Main Handle Type
D-handle
Battery Type
N/A
Maximum BPM
5800
Case Included
Yes
Maximum RPM
1300.0000
Charge Time (Minutes)
0
Number of Batteries Included
0
Charger Included
No
Operation Modes
Hammer; rotary hammer
Chisel Lock Positions
Yes
Package Contents
Rotary Hammer, Auxiliary Handle, Depth Guide, Case
Chuck Type
SDS-plus
Side Handle Included
Yes
Cordless
No
Tool Power Output
N/A
Electronic Speed Control
No
Variable Speed
Yes
Forward and Reverse Switch Included
Yes
Voltage (Volts)
120.0000
Handle Type
D-handle
