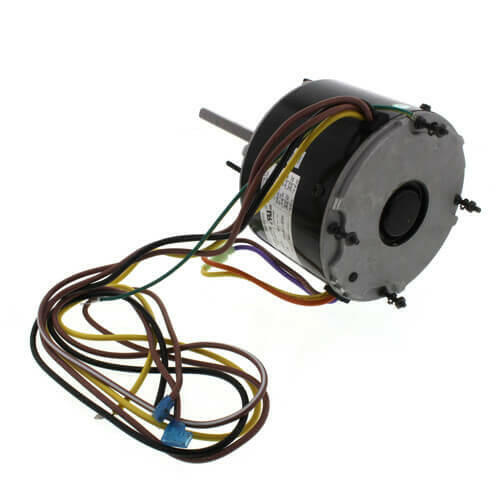

1/4HP 208-230V 1075RPM COND MT
- Brand
- Mars
- SKU / Item reference
- Item # 21223976 | Model # 10728
- UPC / Barcode
- 685744107286
Supplied specifications
- Material
- Metal
Product overview
MARS Outdoor Condenser Fan
Vertical Shaft Up or Shaft DownWeep hole in each end shieldRheem mounting holes w/screws installedWater slinger on shaftDouble full flatted shaftThermally ProtectedExtended Studs/Belly Band/Mounting Holes
No. of Poles
6
Motor Type
PSC
Enclosure
TEAO
HP (Max.)
1/4
Voltage
208-230
Mounting
Belly Band, Extended Clampbolts
Speeds
1
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
1.8
Bearing
Ball
Lead Length (in.)
36
Thermal Protection
Auto
Ambient Deg C
60
Ins. Class
B
Shaft Dia. (in.)
1/2
Capacitor Included
No
Shaft Length (in.)
6.5
Capacitor Rating
5/370
Service Factor
1.0
Duty
Continuous
