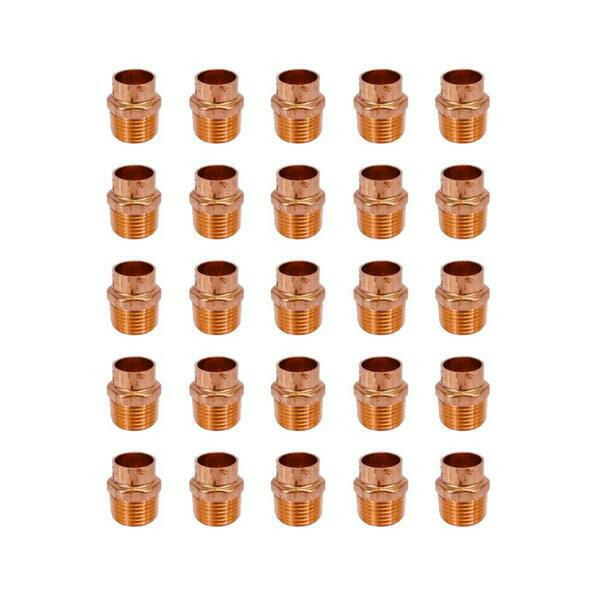

SABER SELECT 1/2-in SWT x 1/2-in MIP Copper Male Adapter
- Brand
- Saber Select
- SKU / Item reference
- Item # 81223205 | Model # 85917
- UPC / Barcode
- 01223085925
- Product option
- 25-Pack
Supplied specifications
- Dimensions
- Diameter (End 1)
1/2-in
Pipe Diameter
N/A
Diameter (End 2)
1/2-in - Material
- Copper
- Color / finish
- Copper
Product overview
The 1/2-inch C x 1/2-inch MIP wrought copper pressure male adapter is for use in residential and commercial plumbing systems. The fitting provides a means of adapting a solder pipe connection to a threaded pipe connection and features a sweat x male pipe thread connection. Compatible with all types of copper tubing, this fitting can be used in both above and below ground applications. The copper construction provides long-lasting durability. Lead-free and NSF certified.
Can be used with all types of copper pipe
Works with a 1/2 FIP and a 1/2 in. copper pipe (nominal size)
MIP x sweat connection
1/2 in. inside diameter and 5/8 in. outside diameter
Lead-Free
Max working pressure of 582 PSI
Temperature range of -20° F to 250° F
