Product reference sheet

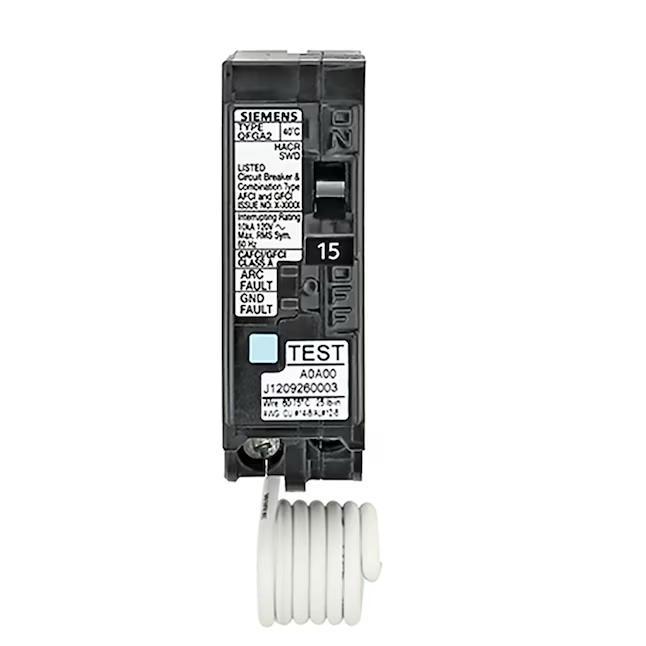

The Dual Function Circuit Breaker combines Class A 5mA GFCI and Combination Type AFCI, protecting against both Arc Faults and Ground Faults. This, along with the new Self-Test feature, makes it the first in class in electrical safety for homeowners. The 2014 National Electrical Code (NEC) requires both Arc Fault and Ground Fault protection on kitchen and laundry circuits. Before the release of Dual Function Circuit Breakers, the only option to comply with this code was to pair an AFCI circuit breaker with a GFCI receptacle. The Dual Function Circuit breaker combines these 2 devices into once solution that provides both cost savings and less hassle in installation and maintenance. This is a win solution for everyone. Testing GFCI's and AFCI's on a monthly basis is a good idea that is sometimes forgotten. Underwriters Laboratories (UL) suggests that AFCI/GFCI devices be tested every 30 days after installation to ensure they are properly working. Now the new Self-Test feature enables the Dual Function Circuit Breaker to automatically and continuously test itself to ensure that it is working properly. If it is detected that the device has been compromised, the device trips itself. This effortless system guarantees that only the best protection is given to your home at all times.



Provides both ground fault and arc fault circuit protection


LED trip indicators to help identify fault conditions


Autonomously and continuously tests itself for device malfunction


The National Electrical Code requires both Arc Fault and Ground Fault protection on kitchen and laundry circuits


Save time and money by combining two safety devices into one, using a Dual Function breaker provides cost savings compared to an AFCI breaker with GFCI receptacles


Exclusive Insta-wire connections


#14 - #8 AWG copper, #12 - #8 AWG aluminum wire range


10,000 AIC rating


HACR and SWD rated
