Product reference sheet

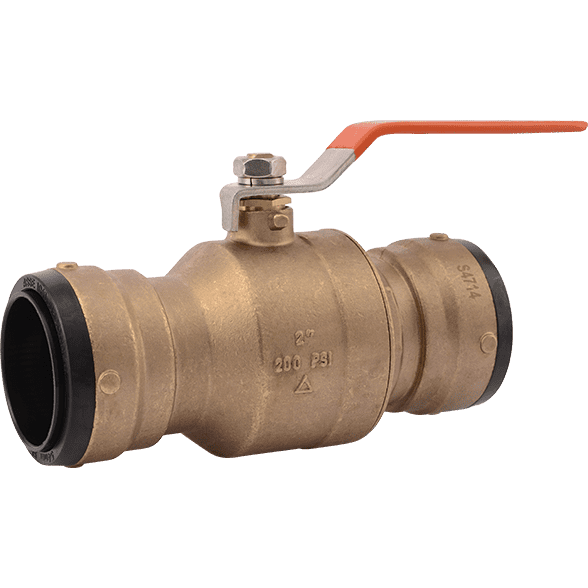

SharkBite large-Dia Push-to-Connect fittings are the fastest way to connect PEX, copper, CPVC, PE-RT, or HDPE pipe in any combination. They are available in 1-1/4 in., 1-1/2 in. and 2 in. CTS sizes. No soldering, clamps, unions, glue, or special tools are required. Simply insert the pipe and the teeth bite down and grip tight, while a specially formulated O-ring compresses to create a watertight seal. Changes can easily be made by rotating the fitting after installation. Removing the fitting is just as fast using a disconnect tool so fittings can be easily changed or reused. Designed with stainless steel gripping teeth for a secure connection, a chlorine-resistant O-ring for a long-lasting seal, and backed by a 25-year warranty.


Push-to-connect fittings are ideal for installation in tight spaces
Rated to 200°F and 200 psi
Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
Can be installed on wet or dry lines and pressure tested immediately, no waiting on soldered joints to cool or solvents to dry
When connecting to PEX pipe, a stiffener (SBTL35, SBTL41, SBTL54) is required
Fitting can be removed with a large Dia disconnect tool (UXLDC35, UXLDC41, UXLDC54)
Low-lead DZR corrosion-resistant brass body
Code approved, IAPMO listed, for details see specifications
25-year warranty when used with PEX, copper, CPVC and PE-RT pipe
5-year warranty when used with SDR-9 HDPE pipe
