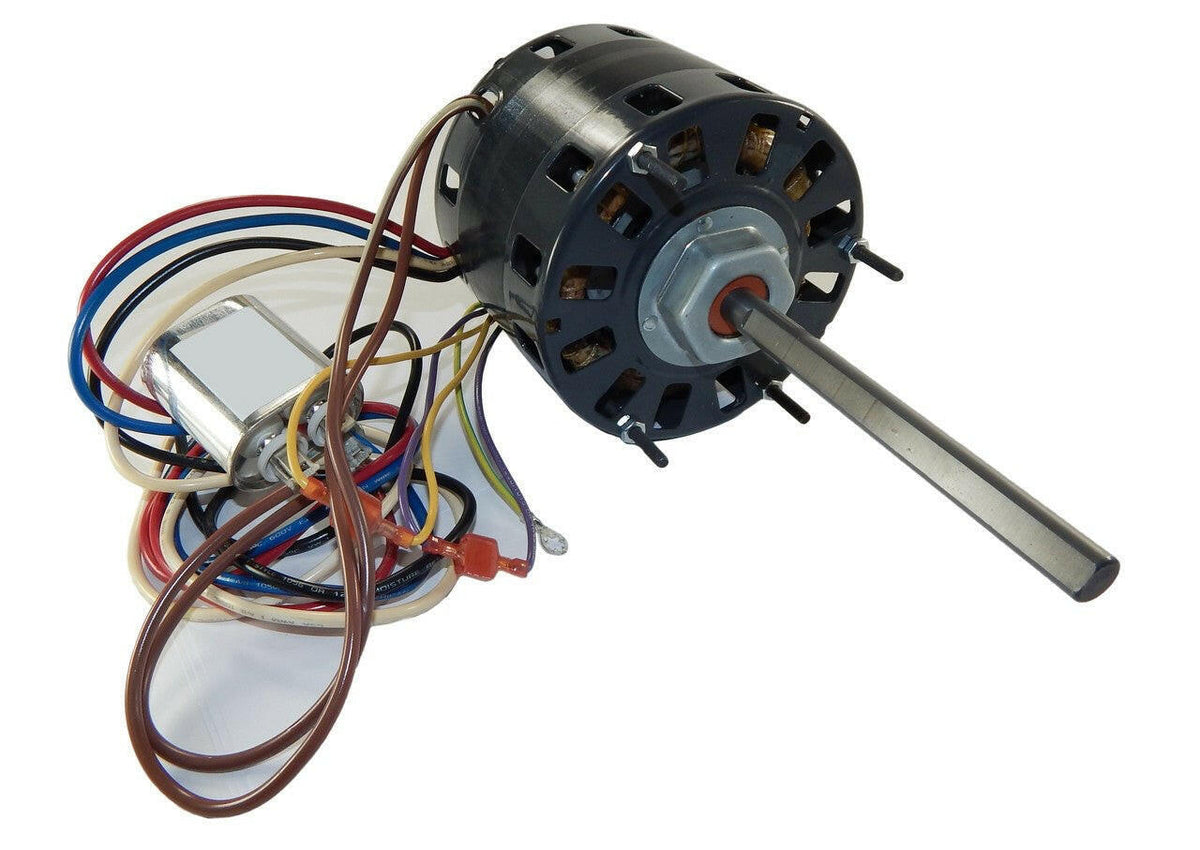

PEMS D151 Fan and Blower Motor 1/4-1/5-1/6 HP 1 Ph 60 Hz 230 V 1050 RPM 3 Speed

Out of stock
SKU: Item # 4122491 | Model # D151
$223.00 inc. VAT

Ways to get this item

Shipping
Currently unavailable
Pickup
Currently unavailable

Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.

Product at a glance

Full specifications
Item # D151
Material
Steel
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Keep your supplies organized.

Create a branded label with a QR code to scan and reorder this exact option.
View comparison View comparison Choose up to 4 products to compare.

Product details

Product overview



PEMS D151 Fan and Blower Motor 1/4-1/5-1/6 HP 1 Ph 60 Hz 230 V 1050 RPM 3 Speed 42 Frame

KEY FEATURES

  • Direct Drive Blower Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 30" Leads
  • Extended Studs Shaft End, Belly Band

General Specifications

UPC: Weight: 11.80 LB
Packaged Length: 5.13 IN Packaged Width: 5.13 IN
Packaged Height: 15 IN Country of Origin: Mexico

Nameplate Specifications

Output HP: 1/4-1/5-1/6 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 230 V
Current: 1.7/1.2/1.0 A Speed: 1050 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 10.97 in
Shaft Diameter: 0.500 in Shaft Extension: 6.00 in

Technical information

Specifications

Brand / manufacturer
PEMS
SKU
Item # 4122491 | Model # D151
Product category
Blower Motor
Item weight
13.0 lb
Material
Steel
Saber exclusive
No
