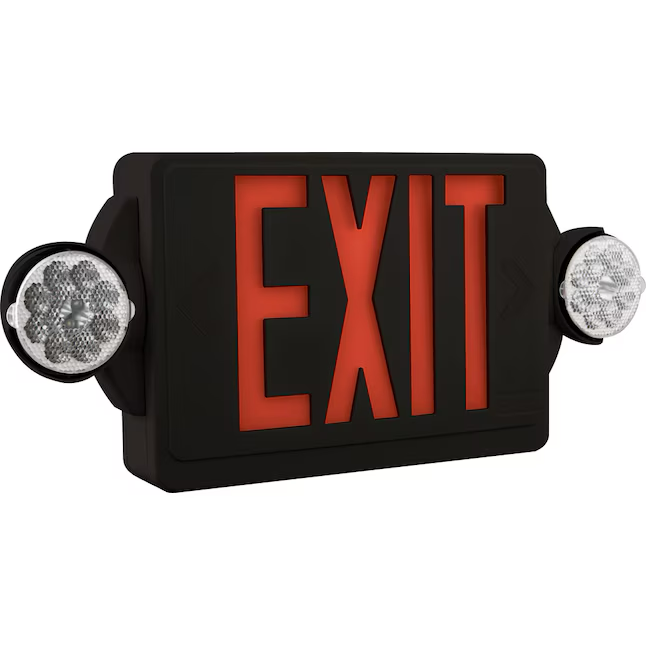

Lithonia Lighting LHQM 5-Watt 120/277-Volt LED Black Hardwired Exit Light with Red Lights
- Brand
- Lithonia
- SKU / Item reference
- Item # 71223565 | Model # LHQMLEDBRM6
- UPC / Barcode
- 745976254124
Supplied specifications
- Dimensions
- Depth (Inches)
2.25
Width (Inches)
19.25
Height (Inches)
8 - Material
- Plastic
- Color / finish
- Black
- Voltage
- 120/277
Product overview
The Contractor Select Quantum® LHQM LED emergency light and exit combination unit from Lithonia Lighting® with improved aesthetics and performance, is easy to install and maintain. The advanced optical design and electronic technology deliver high-quality light output when it is needed most.
APPLICATIONS: Ideal for small commercial indoor applications requiring match existing equipment for mounting heights up to 10’
RATINGS: UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC) and OSHA, UL Damp Location 50 to 104 degrees F (10-40C) listed
VOLTAGE: Functions between 120 or 277 volts (60 Hz) with input wattage of 4.3 watts
HOURS OF LIFE: The typical life of the LED lamp is 10 years using one 1.5 Watt LED per lamp head
DESIGN: Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof, UL94V-0 flame rating, UV-stable resin resists discoloration from natural and man-made light sources
BATTERY: Emergency combo provided with test switch, status indicator and rechargeable battery with maintenance-free 9.6V nickel-cadmium battery provides 90 minutes of emergency power
WARRANTY: Buy with confidence with a 5-year limited warranty
DIMENSIONS: Length: 19.25 in x Height 8.0 in
INSTALLATION: Easily replaces existing emergency combination unit
APPLICATIONS: Ideal for small commercial indoor applications requiring match existing equipment for mounting heights up to 10’
RATINGS: UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC) and OSHA, UL Damp Location 50 to 104 degrees F (10-40C) listed
VOLTAGE: Functions between 120 or 277 volts (60 Hz) with input wattage of 4.3 watts
HOURS OF LIFE: The typical life of the LED lamp is 10 years using one 1.5 Watt LED per lamp head
DESIGN: Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof, UL94V-0 flame rating, UV-stable resin resists discoloration from natural and man-made light sources
BATTERY: Emergency combo provided with test switch, status indicator and rechargeable battery with maintenance-free 9.6V nickel-cadmium battery provides 90 minutes of emergency power
WARRANTY: Buy with confidence with a 5-year limited warranty
DIMENSIONS: Length: 19.25 in x Height 8.0 in
INSTALLATION: Easily replaces existing emergency combination unit
