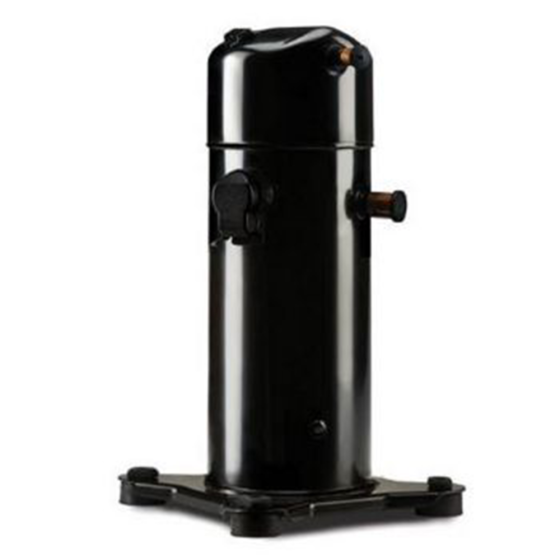

LG Hermetic Scroll Compressor R410A, 36,000BTU, 208/230Vac, Single Phase
- Brand
- LG
- SKU / Item reference
- Item # 71223109 | Model # ABG036KAB
Supplied specifications
- Color / finish
- Black
Product overview
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 36,000• Refrigerant: R410A• Connection Type: Molded Plug (Included)• Oil: POE (Polyol Ester)• Voltage: 208/230Vac• Single Phase• Capacitor Rating: 45/440µF• MCC: 24.8• LRA: 112.3• RLA: 15.9• Hertz: 60• Suction Line Size: 7/8"• Suction Line Height: 11.61"• Discharge Line Size: 1/2"• Discharge Line Height: 15.51"
Electrical
Hertz
60
Phase
1
RLA
15.9
Voltage
208/230
Specification
BTU Rating
36 to 40kBTU
Oil
POE (Polyester)
Suction Line Height
11.62"
Discharge Line Height
15.50"
Discharge Line Size
1/2"
BTU Output
36000
Compressor Type
Scroll
Refrigerant
R-410A
Safety Standards
California Prop 65
Yes
Weights and Dimensions
Operating Weight (lbs)
73
Exterior Dimensions (D) (inches)
10.500000
Exterior Dimensions (W) (inches)
11.000000
Exterior Dimensions (H) (inches)
22.000000
Shipping Weight (lbs)
73.000000
Warranty
Country of Origin
Korea (North)
