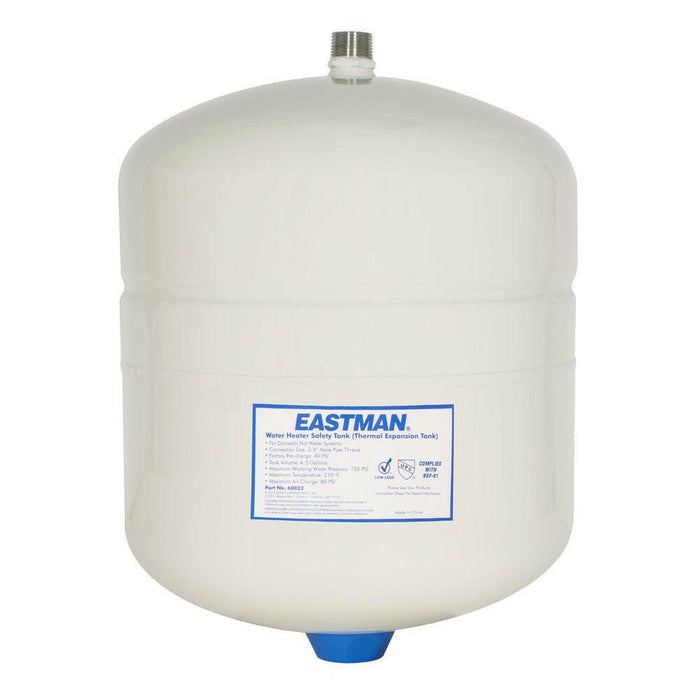

Eastman 4.5-Gallons Expansion Pressure Tank
- Brand
- Eastman
- SKU / Item reference
- Item # 61223478 | Model # 60023
- UPC / Barcode
- 091712600237
Supplied specifications
- Dimensions
- Diameter (Inches)
11
Tank Discharge Size (Inches)
0.075
Height (Inches)
15.4
Thread Size (Inches)
0.75
Weight (When Empty) (lbs.)
9.04
Tank Capacity (Gallons)
4.5 - Color / finish
- White
Product overview
The Eastman 4.5-Gallon Thermal Expansion Tank provides a secure connection to water heaters that prevents dangerous build-ups of pressure. This water heater expansion tank stops hot water from backflowing into the cold water line and prevents hot water from escaping through the pressure relief valve and onto the floor.Constant fluctuations in water pressure can be dangerous and they can damage the water heater, properly installing a thermal expansion tank can solve all these issues. This product comes with a 6-year limited warranty and is factory pre-charged at 40 psi. Complies with NSF-61 and Lead-Free guidelines. UPC approved.
Prevents dangerous pressure build-ups
For installation on residential water heaters
Built with a butyl rubber diaphragm
3/4 in. MIP connection. 4.5 Gal. capacity
Factory pre-charged at 40 PSI
Maximum operating temperature: 210-degrees F. Maximum working pressure: 150 psi
Dimensions: 15.3 in. L X 11 in. W X 10.9 in. H
Prevents dangerous pressure build-ups
For installation on residential water heaters
Built with a butyl rubber diaphragm
3/4 in. MIP connection. 4.5 Gal. capacity
Factory pre-charged at 40 PSI
Maximum operating temperature: 210-degrees F. Maximum working pressure: 150 psi
Dimensions: 15.3 in. L X 11 in. W X 10.9 in. H
