Product reference sheet

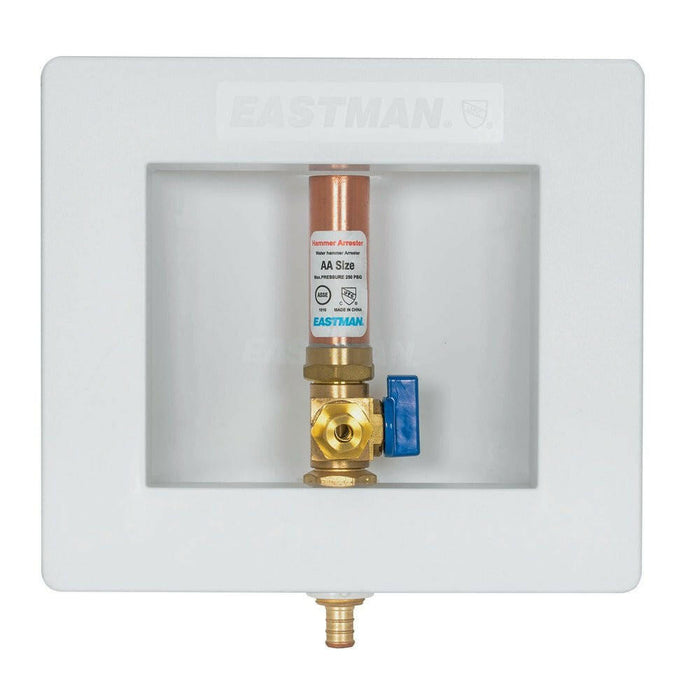

The Eastman® ice maker outlet box with hammer arrestor provides a safe water supply installation for refrigerators, water dispensers, and ice makers. It is built with a one-piece box and flange design. It comes with a pre-installed support bracket, a faceplate cover and a 1/4-turn ball valve for shut-off during maintenance with a hammer arrestor that prevents pipes from shaking and pounding. This ice maker outlet box has a 1/2-inch Crimp PEX inlet connection and a 1/4-inch outer diameter compression outlet. It is designed for recessed residential applications. Intended for service at temperatures between 34° F (1° C) and 180° F (82° C), with an allowable working pressure of 125 psi. Complies with lead-free law. UPC approved.
Technical Specifications


Connection: 1/2 in. Crimp PEX inlet x 1/4 in. OD Compression outlet

Working Temperature: 34° F to 180° F

Working Pressure: 125 psi

Dimensions:6.5 in. x 3 in. x 6.5 in
