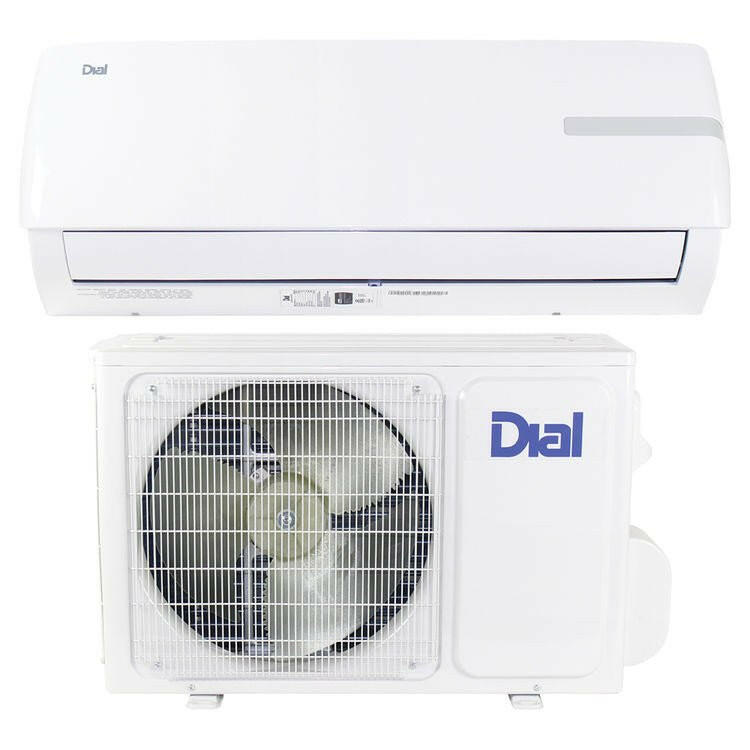

Read shipping policy →Dial® 22 SEER (12,000 BTU) 115V Mini-Split (1 Ton)
Regular price
$1,430.00
inc. VAT
Select an available option combination to check delivery and pickup.
Ways to get this item
- Shipping
- Currently unavailable
- Local delivery
- Currently unavailable
- Pickup
- Currently unavailable
Estimates depend on stock, order cutoff, destination and working days. Final options are confirmed at checkout or with our team.
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Keep your supplies organized.
Create a branded bin label for this product.
Product details
Product overview
Feature Highlights
Eco-Friendly Energy Savings
The unit uses R-410A refrigerant, which is more environmentally friendly and allows for higher SEER ratings that reduce energy consumption.
Low Temperature Cooling
Cooling mode can be used at a lowest of 5°F (-15°C) outdoor temperatures.
Smart Temperature Mode
Operation mode and temperature are automatically set based on the current room temperature.
Fast Cooling Mode
Fast cooling operates at a high fan speed and changes the set temperature automatically to 61°F (16°C) to cool the area quickly.
Wi-Fi
Wi-Fi control compatible with smart phone app (Android and iOS).
4 Direction Air Flow
Using the remote controller, the air flow can be set to a desired static position or to swing up/down and left/right automatically.
Independent Dehumidification
In addition to dehumidifying during cooling mode, the Dry mode reduces moisture in the air without drastically changing the area temperature.
24 Hour Timer
Program the unit for one on/off cycle at a desired time within a 24 hour time period.
Quiet Operation
Quiet operation of the outdoor unit (DC inverter) during both cooling and heating modes.
Easy Installation
Instead of a large exhaust from a window or wall, it requires only a 3 inch hole to connect the indoor unit to the outdoor unit.
HEPA Filter
True HEPA replaceable air filters.
Additional Features
- Intelligent Pre-Heating / Defrost
- Anti-Frozen Pipe Heating (8°C / 46°F)
- 2-Way Drainage
- Washable Filter
- Outdoor Unit Chassis Heating
- Fireproof Electrical Box
- Sleep Mode
- Follow Me / I Feel (Remote Thermostat)
- Celsius and Fahrenheit Display
- Display On/Off
- Auto-Restart
- Louver Position Memory
| System | Air Conditioning Type | Ductless Mini-Split Heat Pump |
| Application Room Size (sqft) | 450 to 550 | |
| Electrical Voltage, Frequency, Phase | 115V~,60Hz,1P | |
| Compressor Motor Technology | Inverter | |
| Refrigerant (pre-charge oz) | R410A 40.9 | |
| Max Pre-Charged Line-Set (ft) | 24.6 | |
| Max Line-Set Length(1) (ft) | 65.4 | |
| Max Height (ft) Indoor & Outdoor | 32 | |
| Liquid Pipe (Diameter-inch) | 1/4 | |
| Suction Line (Diameter-inch) | 3/8 | |
| Performance | Cooling Capacity (BTU/H) | 12,000 |
| Heating Capacity (BTU/H) | 13,000 | |
| SEER (Cooling) BTU/W.h | 22.0 | |
| HSPF (Heating) BTU/W.h | 10.50 | |
| EER (Cooling) BTU/W.h | 12.60 | |
| COP (Heating) W/W | 3.46 | |
| Air Circulation (CFM) | 365 | |
| Moisture Removal per Hr (Dehumidifier) | 0.32gal | |
| Indoor Unit | Dimensions (LxHxD) (inches) | 32 7/8 x 11 x 8 11/16 |
| Weight (lbs) | 19.84 | |
| Airflow (S/H/M/L) CFM | 365/318/265/206 | |
| Air flow (Direction) Vertical / 4-way | 4-Way | |
| Sound Level (H/M/L) dB (A) | 39/32/29/26 | |
| Outdoor Unit | Dimensions (LxHxD) (inches) | 31 7/8 x 23 x 11 |
| Weight (lbs) | 78.26 | |
| Sound Level dB (A) | 53 | |
| Electrical | Current Input Cooling (A) | 8.3 |
| Current Input Heating (A) | 19.7 | |
| Max Current (A) | 15.0 | |
| Current Range (A) | 2.0-15.0 | |
| Power Input-Cooling (W) | 950 | |
| Power Input-Heating (W) | 1100 | |
| Working Temperature Range | Cooling | -15°C-46°C (5°F-115°F) |
| Heating | -20°C-24°C (-4°F-75°F) | |
| Approval & Certifcation | Industry Certification | ETL / AHRI |
| Energy Saving Energy Star V5.0 | Energy Star 5.0 Rating | |
| Warranty | Compressor/Parts (Years) | 7 / 2 |
Technical information
Specifications
- Brand / manufacturer
- Dial Manufacturing
- SKU
- Part # 80150 | Model # 12000-22S-115-0
- UPC / barcode
- 026529801508
- Product category
- Ductless Mini Splits
- Item weight
- 130.0 lb
- Color / finish
- White
- Product location
- Aisle: 6 | Bay: 6
- Saber exclusive
- No
