Product at a glance
Full specifications
Model # 688

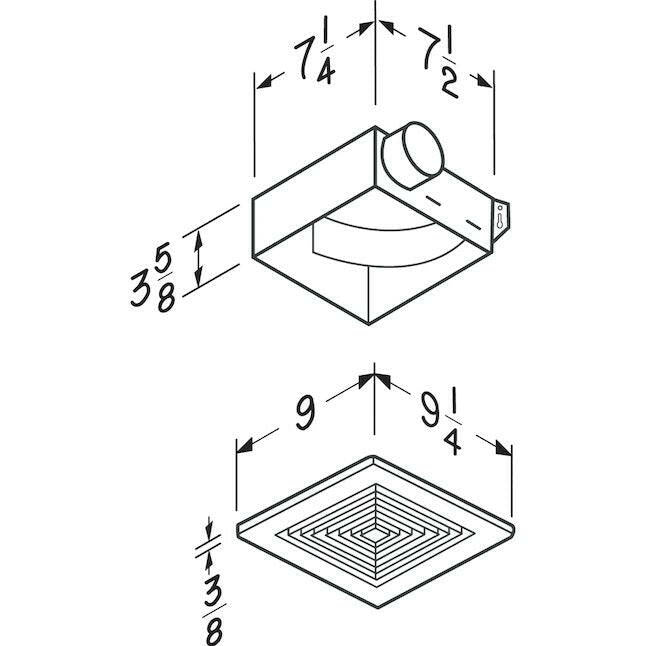

- Dimensions
- Ceiling Cutout Length (Inches)
7.25
Fan Box Width (Inches)
7.5
Ceiling Cutout Width (Inches)
7.5
Grille Length (Inches)
9.25
Duct Size
3-in
Recommended Room Size (Sq. Feet)
45
Fan Box Height (Inches)
3.625
Suggested Room Size
Under 79 sq ft
Fan Box Length (Inches)
7.25
Width of Grille (Inches)
9.0 - Color / finish
- White
Keep your supplies organized.
Create a branded bin label for this product.
A next step for this discontinued item
Replacement products
Review the linked products below for current details, specifications and availability.
Check sizing, connections and requirements before ordering. Contact our team if you need help choosing.
Product details
Product overview

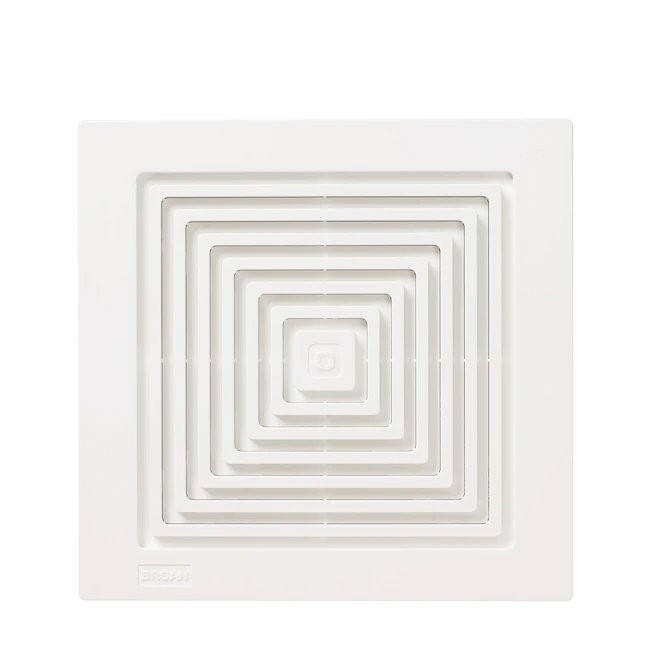

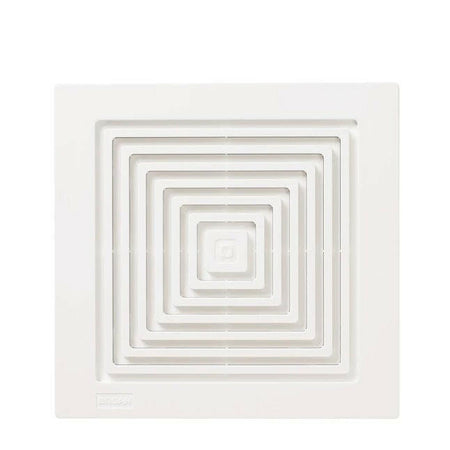

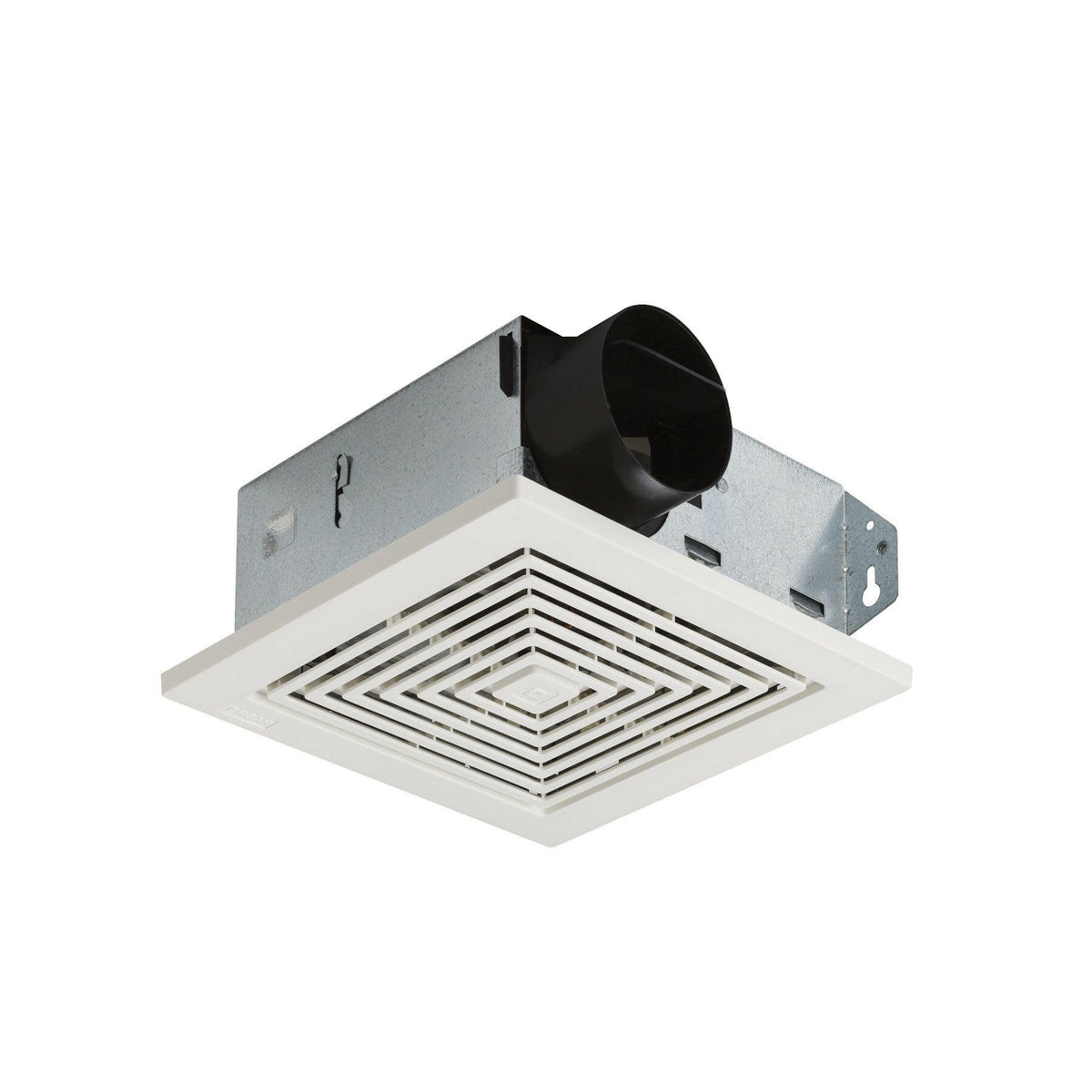

Broan® standard economy Series fans are versatile, compact, and economical ventilation solutions. With a galvanized steel housing and double strength mounting flanges, the economy fan offers powerful ventilation, that helps ventilate air to prevent mold and mildew. Also including a removable motor assembly and plug-in permanently lubricated motor for ease of service and cleaning.
-
50 CFM, sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
-
4.0 Audible sones for privacy while using your bathroom
-
Compact housing for versatile installation
-
Powerful enough for rooms up to 45 sq ft
-
Brighter white grilles blend in to match most common ceiling paint
-
Corrosion resistant galvanized steel housing stands up to moisture
-
Permanently lubricated AC motor engineered for continuous operation
-
Double strength mounting flanges with keyhole slots
-
Quiet polymeric damper prevents cold backdrafts with no metallic clatter
Technical information
Specifications
- Brand / manufacturer
- Broan
- SKU
- Item # 11223984 | Model # 688
- UPC / barcode
- 026715002511
- Product category
- Exhaust Fans
- Item weight
- 3.0 lb
- Dimensions
- Ceiling Cutout Length (Inches)
7.25
Fan Box Width (Inches)
7.5
Ceiling Cutout Width (Inches)
7.5
Grille Length (Inches)
9.25
Duct Size
3-in
Recommended Room Size (Sq. Feet)
45
Fan Box Height (Inches)
3.625
Suggested Room Size
Under 79 sq ft
Fan Box Length (Inches)
7.25
Width of Grille (Inches)
9.0 - Color / finish
- White
- Product location
- Aisle: 4 | Bay: 3
- Saber exclusive
- No
