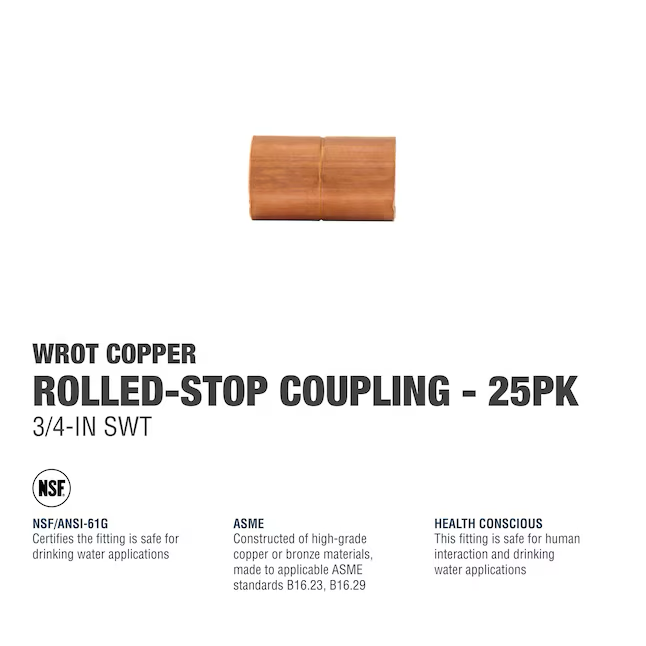

SABER SELECT 3/4-in Copper Rolled-Stop Coupling
- Brand
- Saber Select
- SKU / Item reference
- Item # 81223130 | Model #85813
- UPC / Barcode
- 01223085825
- Product option
- 25-Pack
Supplied specifications
- Dimensions
- Diameter (End 1)
3/4-in
Pipe Diameter
N/A
Diameter (End 2)
3/4-in - Material
- Copper
- Color / finish
- Copper
Product overview
Slip couplings are furnished without center stops so that stationary lengths of copper tubing can be spliced together
Solder connections
Wrot copper solder joint pressure fittings are produced to 1 of the following specifications: material and workmanship ASME/ANSI B16.22; dimensional, material, and workmanship of MSS SP-104 or MSS SP-109; certified to NSF/ANSI 61
Dezincification resistant
Third party certified to Annex G of NSF/ANSI 61 (180°F commercial hot)
Complies with Section 116875 of the California Health and Safety Code and Vermont Act 193
Lead free refers to the wetted surface of pipe, fittings and fixtures in potable water systems that have a weighted average lead content =0.25%; source: California Health and Safety Code (116875); Vermont Act 193
